Multi-Functional Blister Packaging Machine

DPP80

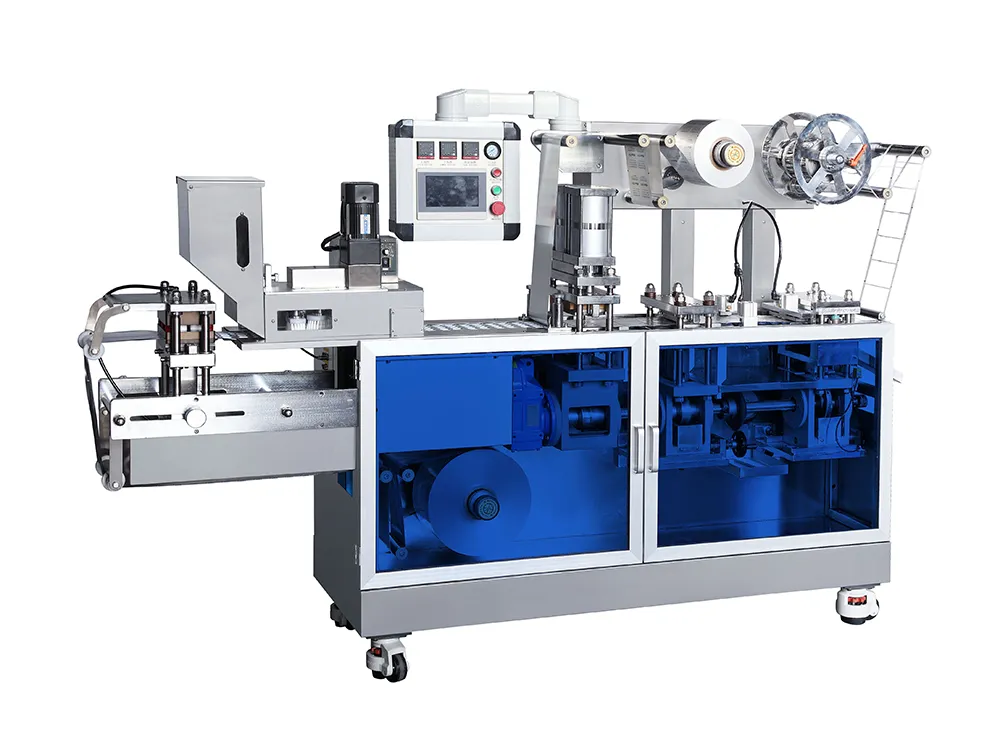

Multi-Functional Blister Packaging Machine

Blistering machine for Alu-Alu, Alu-PVC and Paper-PVC blister packs
  • Up to 45,000 Blisters Per Minute (Alu-Alu)
  • Up to 110,000 Blisters Per Minute (Alu-PVC)
Request a Quote
Multi-Functional Blister Packaging Machine Multi-Functional Blister Packaging Machine Multi-Functional Blister Packaging Machine Multi-Functional Blister Packaging Machine Multi-Functional Blister Packaging Machine Multi-Functional Blister Packaging Machine

This multi-functional blister packaging machine is equipped with online detection and automatic waste rejection functions, ensuring efficiency and precision in packaging. Controlled by a PLC system and operated via a user-friendly touchscreen, the blistering machine incorporates a frequency converter for smooth operation. It is widely suitable for packaging capsules, tablets, honey pills, candies, liquids (ointments), syringes, and irregularly shaped items in Alu-Alu, Alu-PVC, or paper-PVC blister packs. Its versatility makes it an excellent choice for the pharmaceutical, medical, food, cosmetics, and medical device industries.

Key features

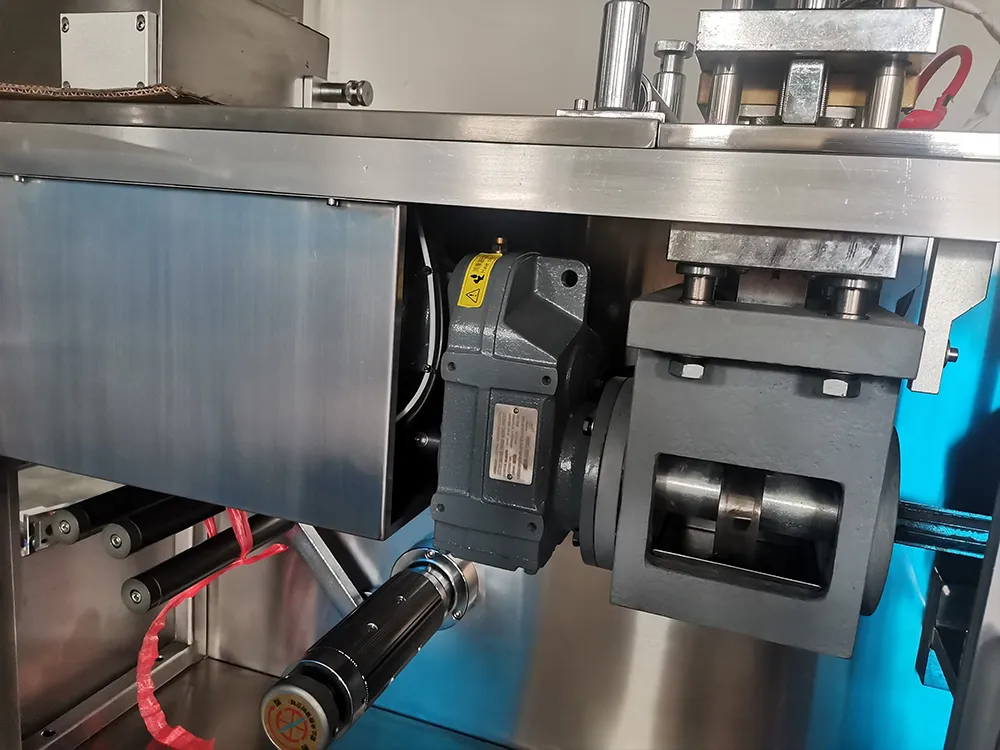

  • Equipped with advanced PLC control system with touchscreen operation. The main drive system uses parallel shafts and helical gear reducers, offering a novel design with stable performance, long service life, and low noise.
  • Multiple feeders available to suit different product types
  • When the machine stops, the sealing cylinder automatically disengages to prevent product damage and extend its lifespan.
Specifications
Cutting Frequency Alu-Alu: 6-25 cycles/min
Alu-PVC: 6-50 cycles/min
Paper-PVC: 6-50 cycles/min
Max. Production Capacity Alu-Alu: ≤45,000 blisters/h
Alu-PVC: ≤110,000 blisters/h
Max. Forming Area & Depth Alu-Alu: 130×130×14 mm
Alu-PVC: 130×130×26 mm
Stroke Length 40-140mm (customizable)
Standard Plate Size (L×W) 80×57mm (customizable)
Air Pressure 0.4-0.6MPa
Air Supply ≥0.2m³/min
Total Power 380V/220V 50Hz 3.6kW
Main Motor Power 0.75kW
Forming Aluminum Foil (T×W) 0.1-0.15×150mm
PVC Sheet (T×W) 0.15-0.5×150mm
PTP Aluminum Foil (T×W) 0.02-0.035×150mm
Dialysis Paper 50-100g×150 mm
Machine Dimensions (L×W×H) 2300×560×1410 mm
Machine Weight 750 kg
