Automatic Blister Packaging Machine

DPP80

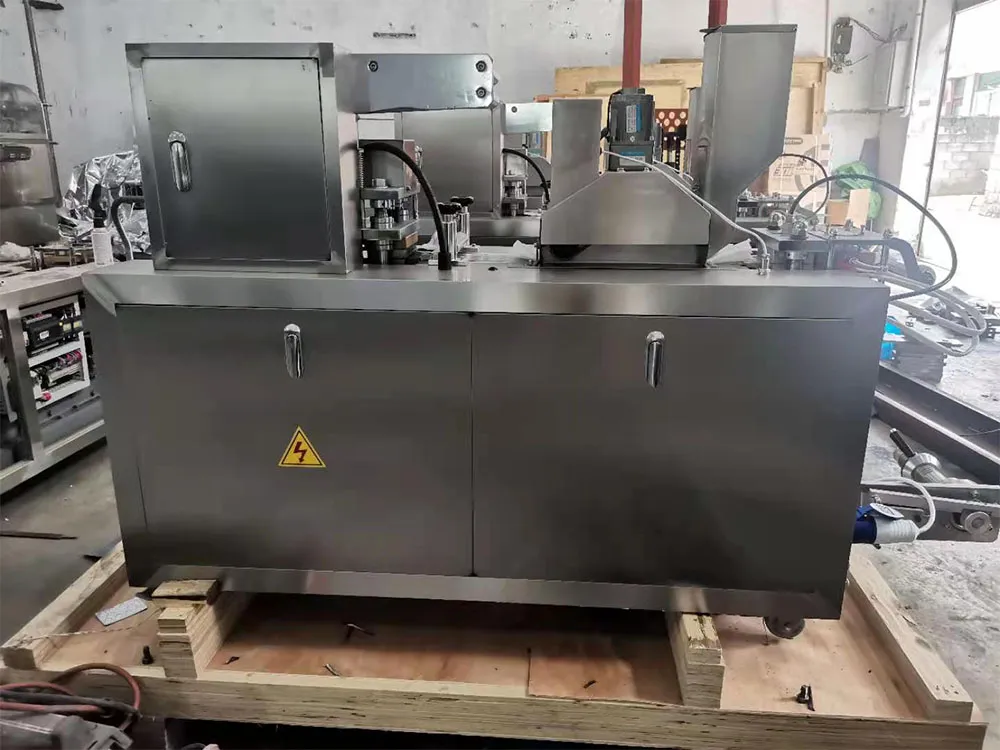

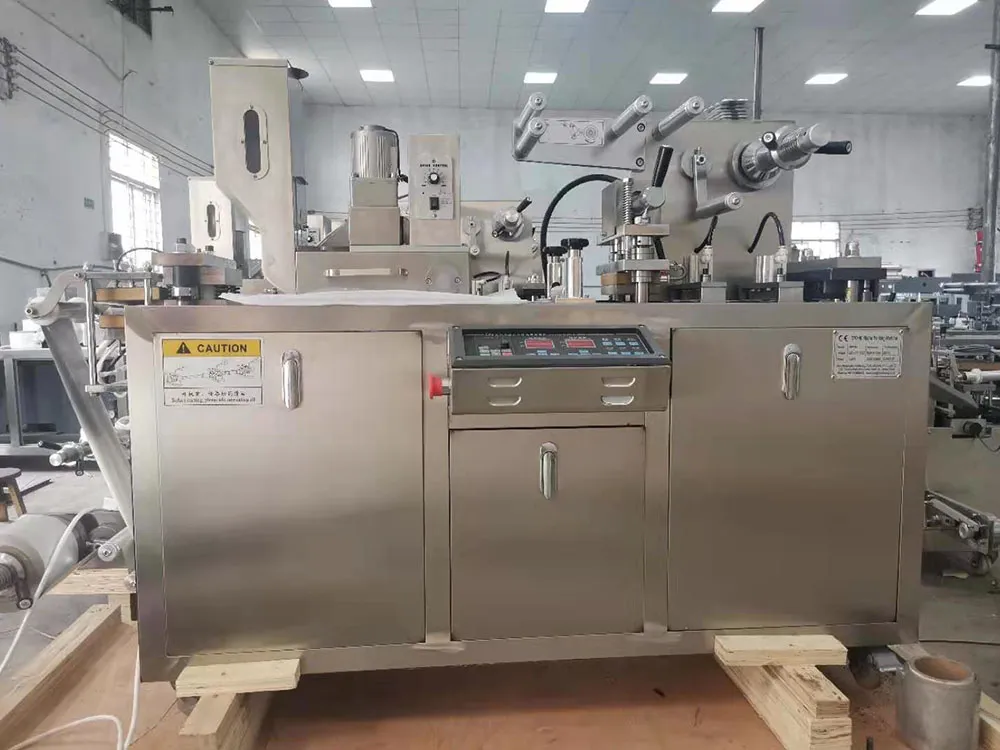

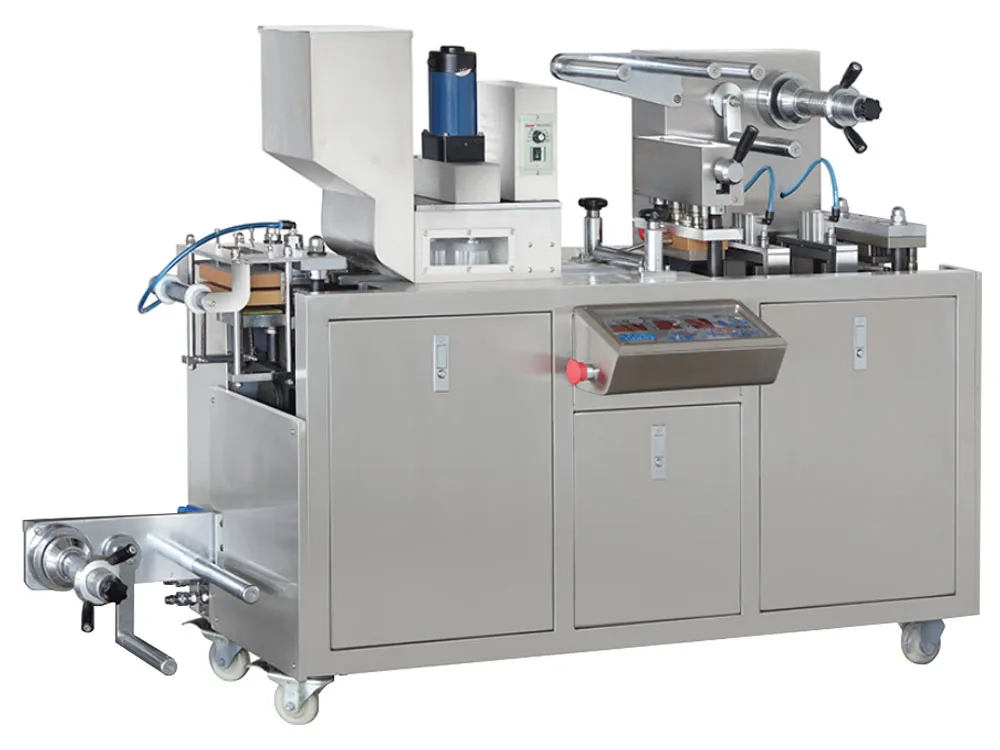

Automatic Blister Packaging Machine

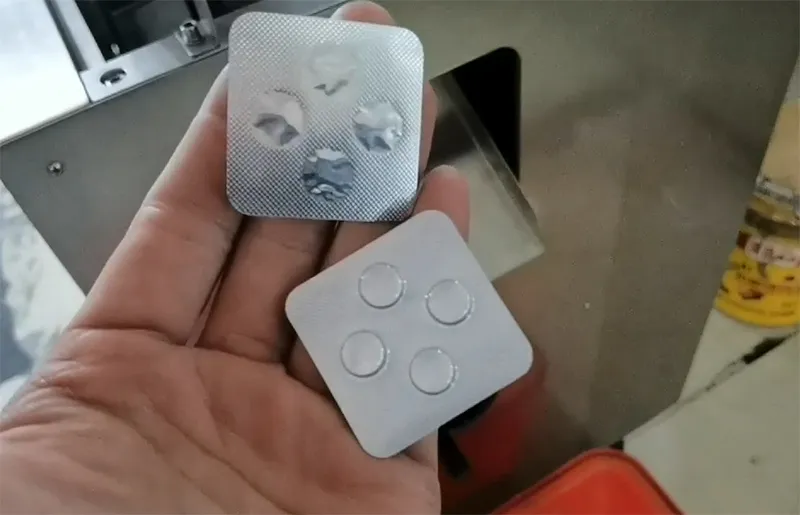

Blistering machine for Alu-Alu and Alu-PVC blister packs
  • 1,200 Blisters Per Minute
    (Alu-Alu 80×57mm)
  • 2,400 Blisters Per Minute
    (Alu-PVC 80×57mm)
Request a Quote
Automatic Blister Packaging Machine Automatic Blister Packaging Machine Automatic Blister Packaging Machine Automatic Blister Packaging Machine Automatic Blister Packaging Machine

This automatic blister packaging machine features an innovative flat-plate design that combines pressing, forming, and mesh heat sealing for simple and flexible operation. Its compact size makes it suitable for small-scale pharmaceutical plants, hospital preparation rooms, and laboratories. It is versatile, capable of handling Alu-Alu, Alu-PVC, and aluminum-plastic packaging for capsules, tablets, candies, health supplements, and even small hardware items.

Applications

This blister packaging machine is ideal for packaging capsules, tablets, and candies, as well as handling liquids (ointments), pastes, and irregularly shaped products like syringes. It is widely used in the pharmaceutical, health supplement, food, cosmetic, and medical device industries, catering to diverse market demands.

  • Automatic Blister Packaging Machine
  • Automatic Blister Packaging Machine
Key features
  • Equipped with an adjustable mechanical arm, supporting blister packaging for various sizes and shapes to meet different product requirements
  • Fully automated system performs feeding, forming, heat sealing, embossing, batch number printing, and cutting continuously, improving efficiency and reducing labor costs
  • Innovative design of flat-plate structure allows easy packaging of uniquely shaped products, such as oval, square, or triangular items, enhancing packaging versatility.

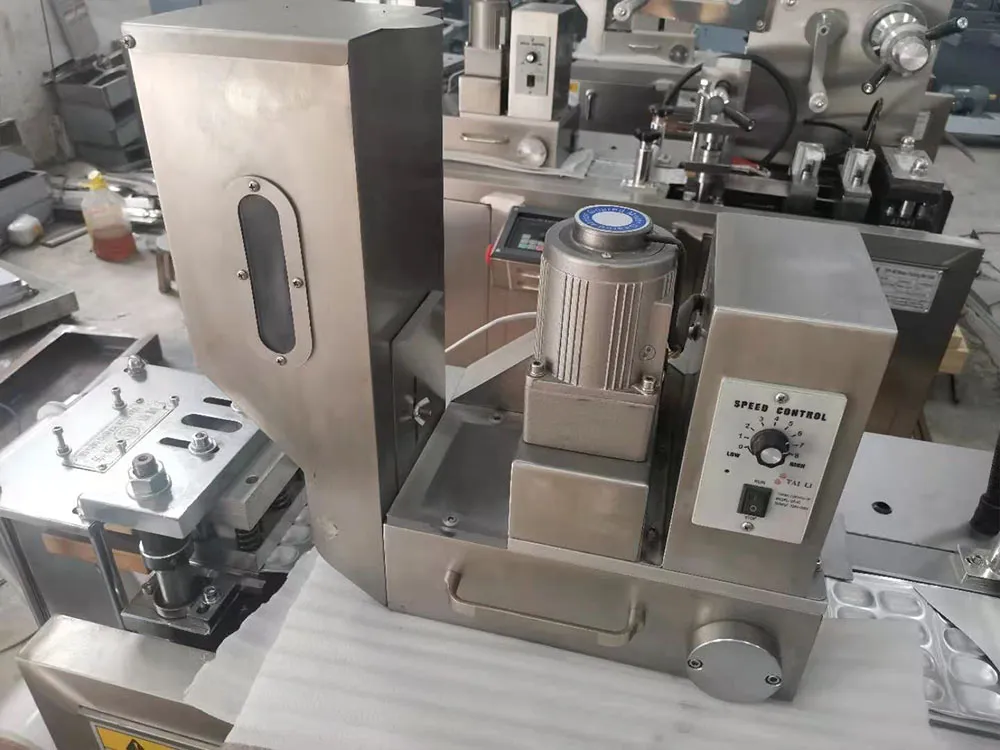

  • Compact design with a frequency converter for intuitive operation, ensuring ease of use.
  • Optional eye-mark sealing (registration mark) system with sensors ensures accurate and reliable packaging.
Specifications
Cutting Frequency Alu-Alu: 6-20 cycles/min
Alu-PVC: 20-40 cycles/min
Max. Production Capacity Alu-Alu: 1,200 blisters/h (based on standard plate size 80×57mm)
Alu-PVC: 2,400 blisters/h (based on standard plate size 80×57mm)
Max. Forming Area & Depth Alu-Alu: 70×90×14mm
Alu-PVC: 70×110×26mm (standard 70×90×14mm)
Stroke Length 20-100mm (customizable)
Air Pressure 0.4-0.6MPa
Standard Plate Size (L×W) 80×57mm (customizable)
Total Power 380V/220V 50Hz 1.8kW
Main Motor Power 0.75kW
PVC Sheet (T×W) 0.15-0.5×100mm
PTP Aluminum Foil (T×W) 0.02-0.035×100mm
Dialysis Paper 50-100g×100mm
Machine Dimensions (L×W×H) 1400×460×950mm
Machine Weight 450 kg
