Pharmaceutical Machinery

API Manufacturing Equipment

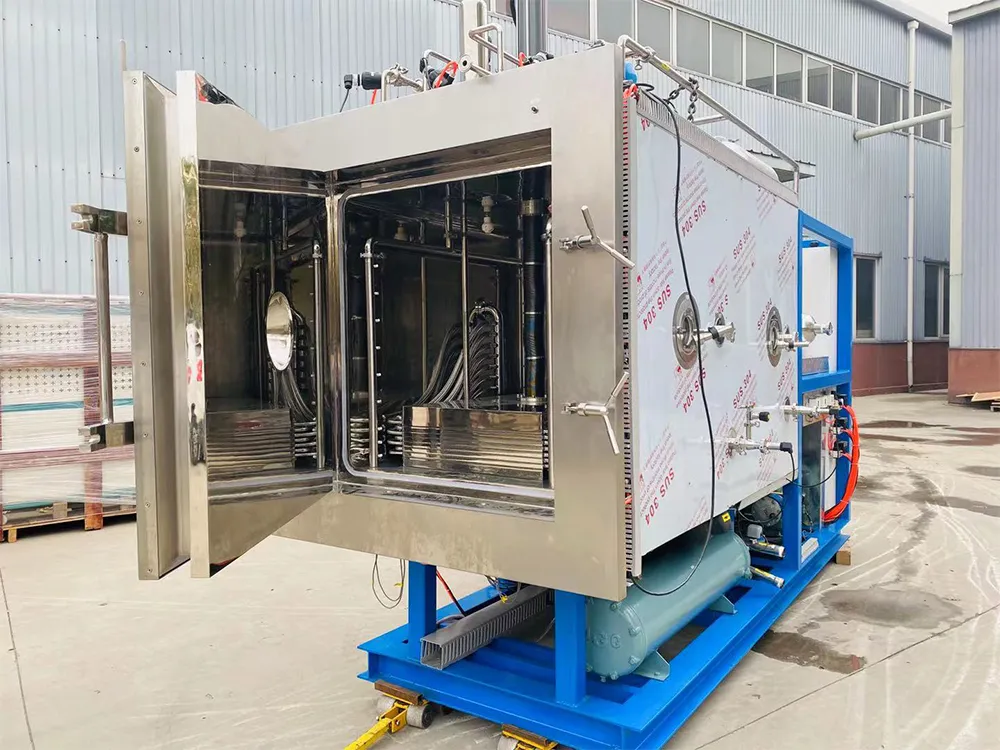

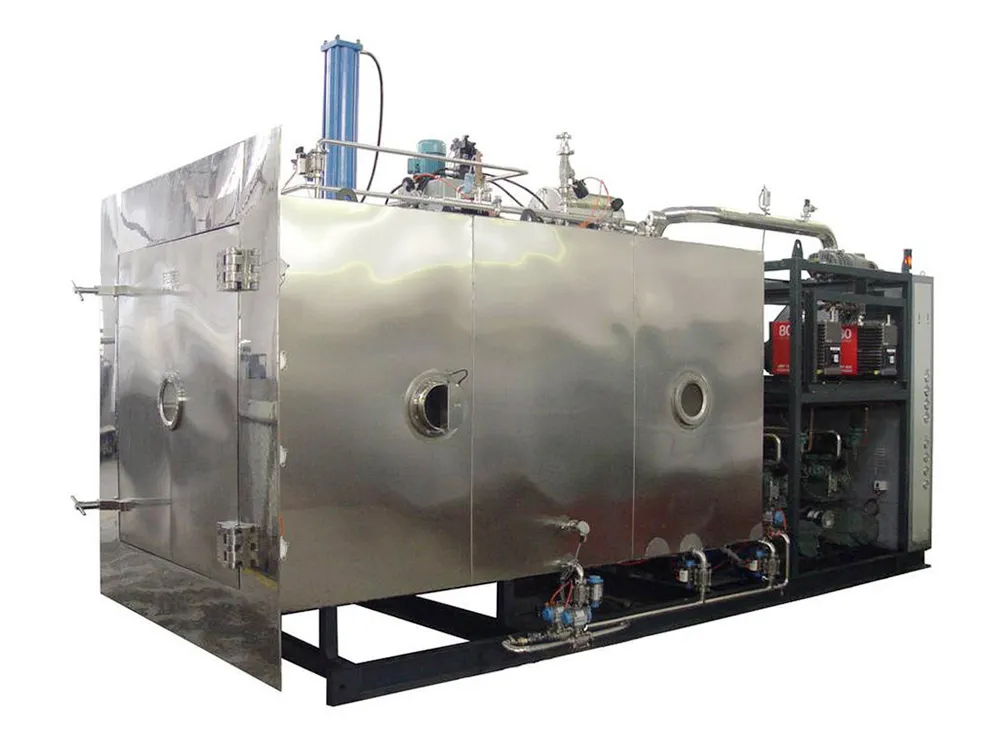

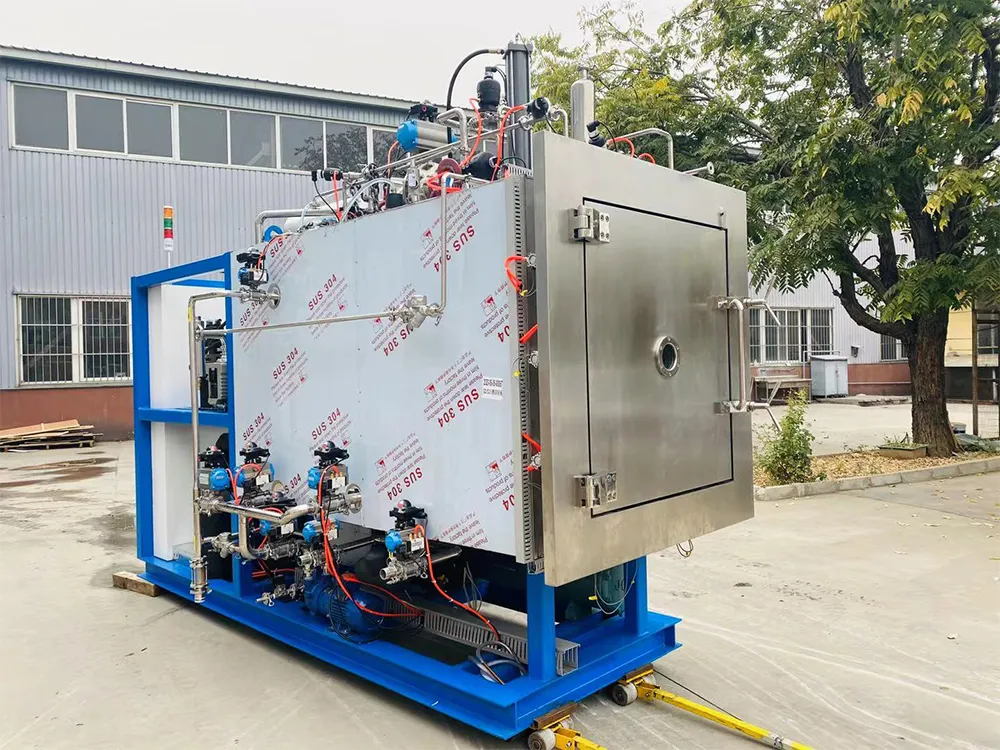

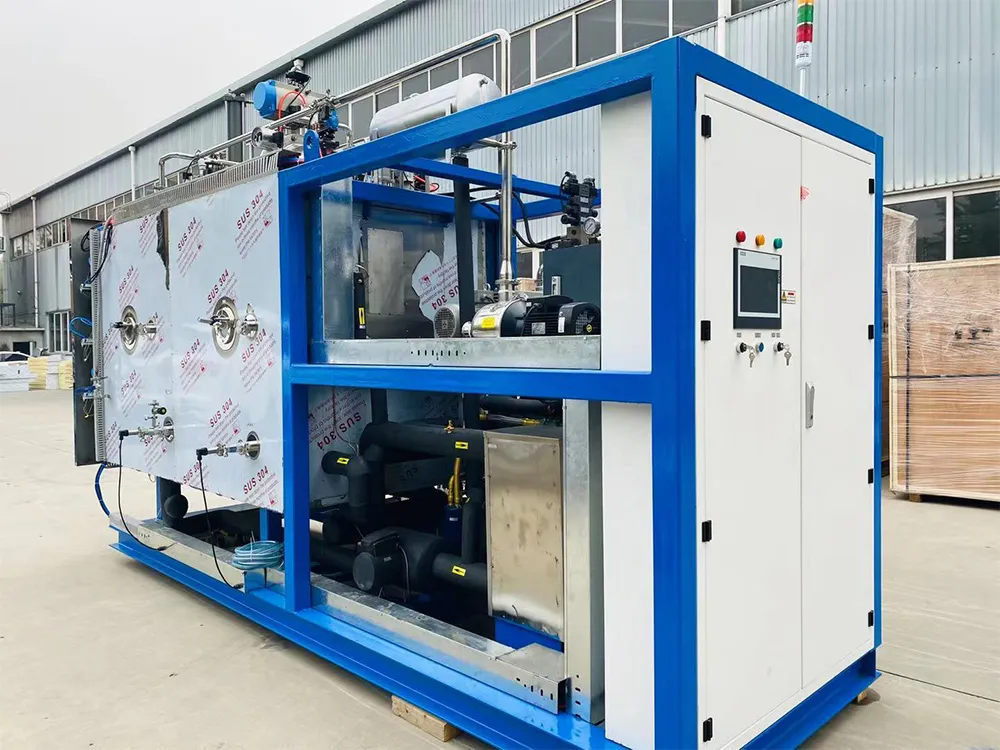

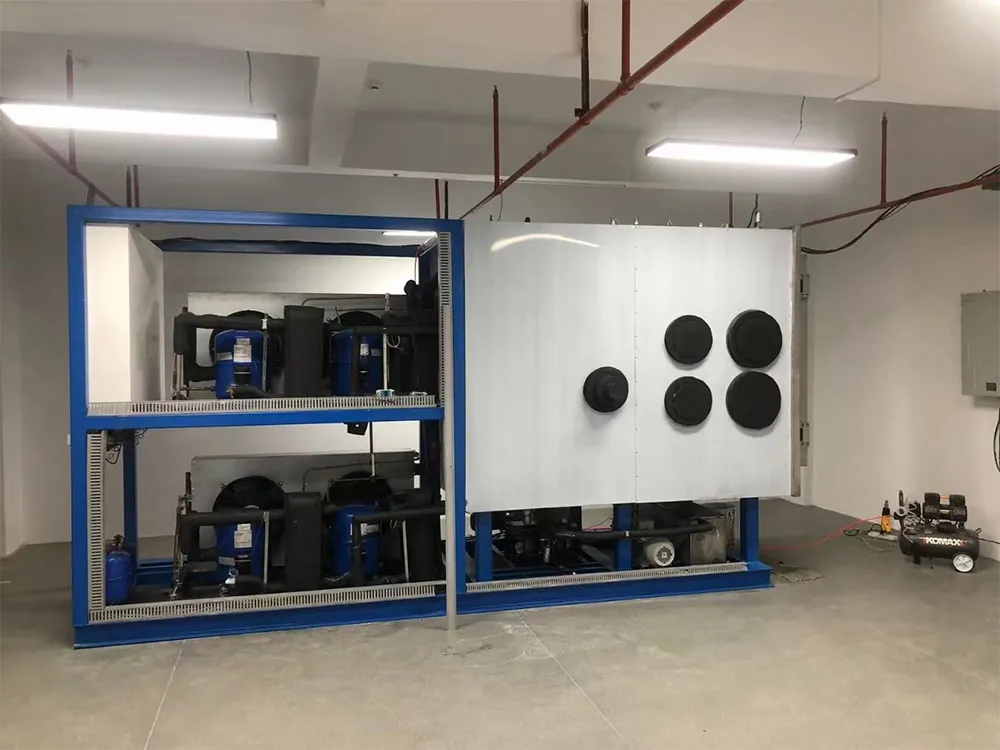

Vacuum Freeze Dryer

GZL-5

Vacuum Freeze Dryer

Drying system for preserving the nutritional contents of foods, pharmaceuticals, biological items
  • 100 kg/batch Water Trapping Capacity
  • 5 m² Shelf Effective Area
Request a Quote
Vacuum Freeze Dryer Vacuum Freeze Dryer Vacuum Freeze Dryer Vacuum Freeze Dryer Vacuum Freeze Dryer

The vacuum freeze dryer uses vacuum and low-temperature technology to remove moisture from materials while retaining their original nutritional content and biological activity. This advanced drying system is widely utilized in industries such as pharmaceuticals, food, cosmetics, and bioengineering.

Key features
  • High water trapping capacity: Offers an effective shelf area of 5 square meters, enabling rapid moisture removal and improved production efficiency
  • Compact design: Integrates the cooling unit and chamber in a compact structure, simplifying maintenance and reducing spatial requirements
  • Compliance with standards: Designed and manufactured in adherence to GMP and FDA standards, ensuring product safety and effectiveness
Applications
  • Pharmaceutical industry: Ideal for freeze-drying vaccines, antibiotics, and other medications, preserving their activity and effectiveness
  • Food industry: Suitable for drying fruits, vegetables, coffee, dairy products, and other foods, retaining their flavor and nutritional value
  • Bioengineering: Used for drying biological products, enzyme preparations, and more to ensure stability and efficacy
  • Cosmetics industry: Perfect for drying cosmetic raw materials while preserving the quality of ingredients
Specifications
Shelf Effective Area 5m²
Water Trapping Capacity 100kg/batch
Power Supply 380V 50Hz Three Phase
Machine Dimensions (L×W×H) Approx. 4800×1500×2500mm (for reference only, contract shall prevail)
Compressed Air >0.1m³/min (P=0.5-0.8MPa)
Cooling Water Approx. 20m³/h (≤25℃)
Cleaning Water Consumption >100L/min (T=80)
Machine Structure Integrated (combined installation of cooling unit and chamber)
Machine Weight Approx. 4500Kg
