Pharmaceutical Machinery

Liquid Dosage
Oral Liquid Bottle Filling Machine

Oral Liquid Bottle Filling Machine

Liquid filling and capping machine for large-volume oral liquid bottles
  • 40 Bottles Per Minute
  • 50 to 100 ml Filling Range
Request a Quote
Oral Liquid Bottle Filling Machine Oral Liquid Bottle Filling Machine Oral Liquid Bottle Filling Machine Oral Liquid Bottle Filling Machine Oral Liquid Bottle Filling Machine

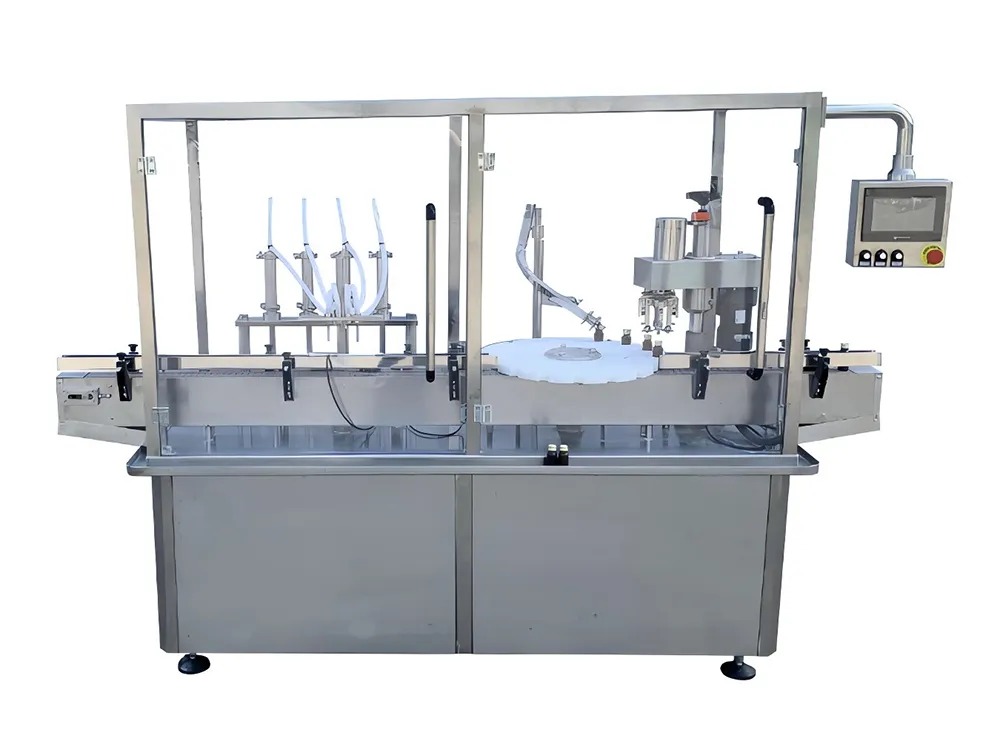

This liquid filling and capping machine is designed for 50-100ml large-volume oral liquid or syrup bottles. Featuring a screw filling system and a no-bottle-no-filling function, it ensures efficiency, precision, and reduced wastage by only dispensing liquid when a bottle is correctly positioned. In addition to the filling machine, we provide auxiliary equipment such as bottle feeding machines, washing machines, tunnel sterilization ovens, and labeling machines to form a complete production line. Equipment adjustments can be made to match your specific production line requirements.

Key Features
  • Equipped with a 316L stainless steel pump controlled by a PLC, offering high filling accuracy and an adjustable filling range for various applications

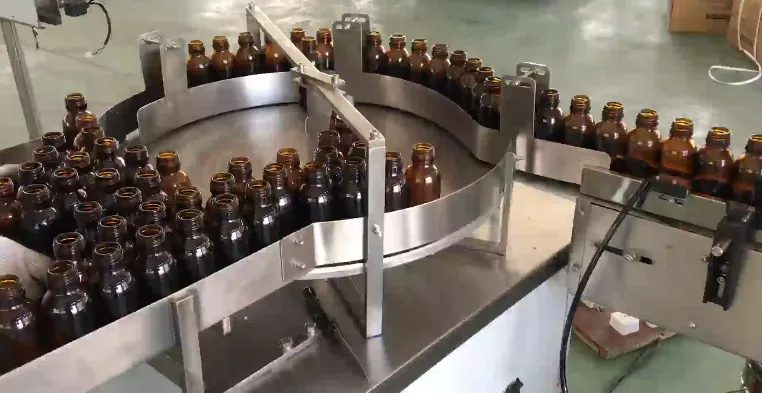

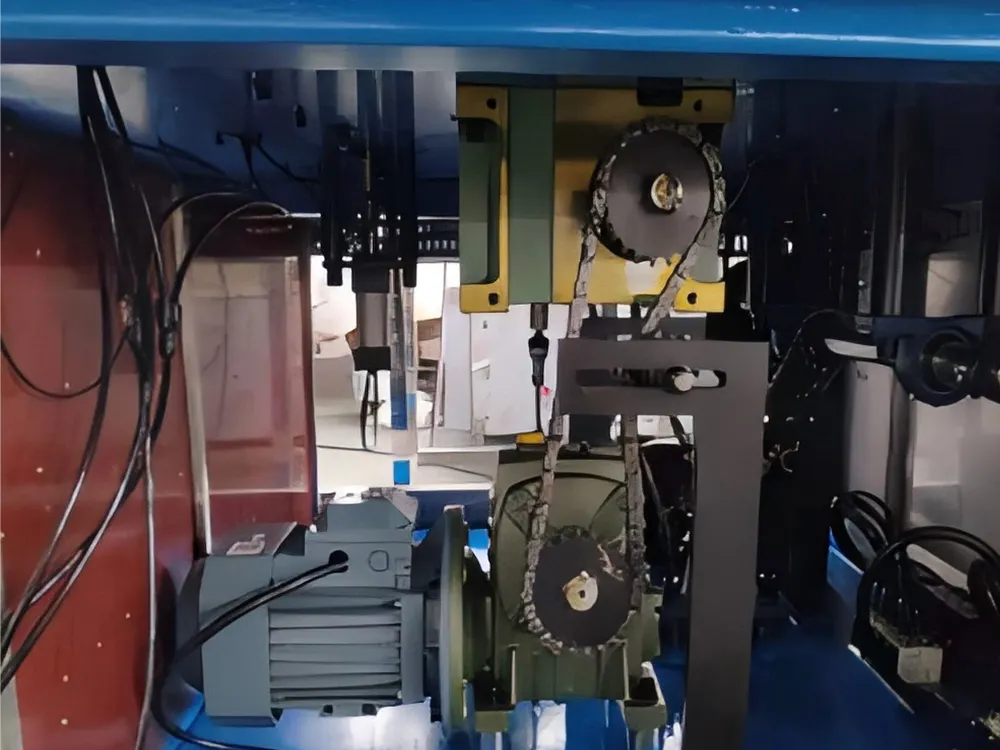

  • Features an automatic bottle infeed and outfeed system with a durable conveyor belt made from POM material and driven by a Taiwan-brand motor with stepless speed control

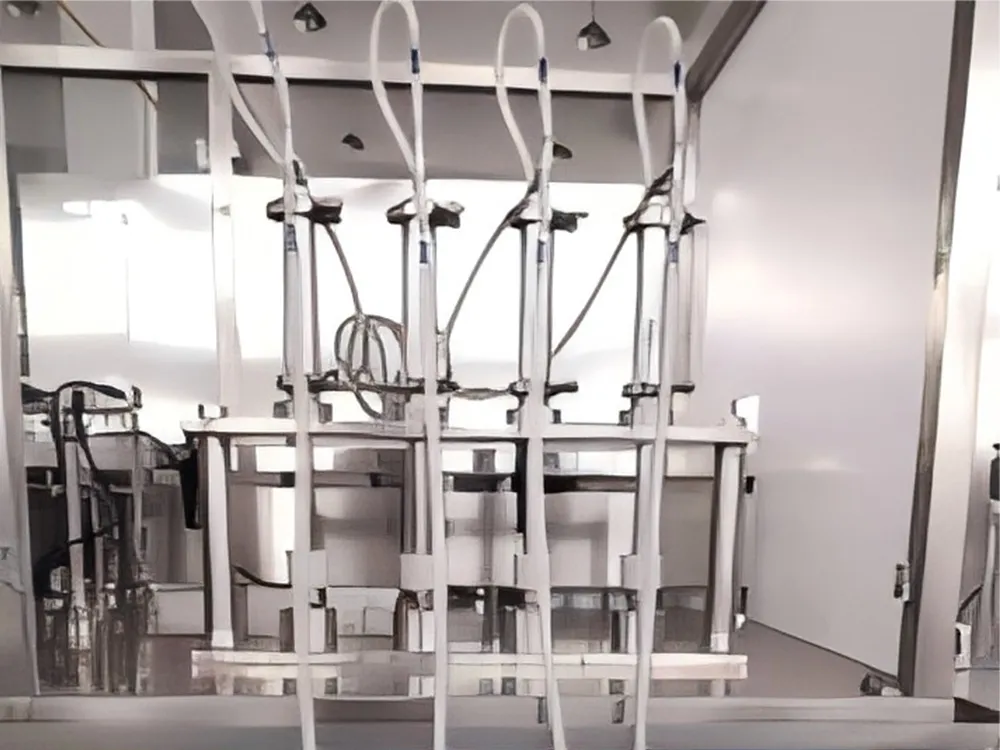

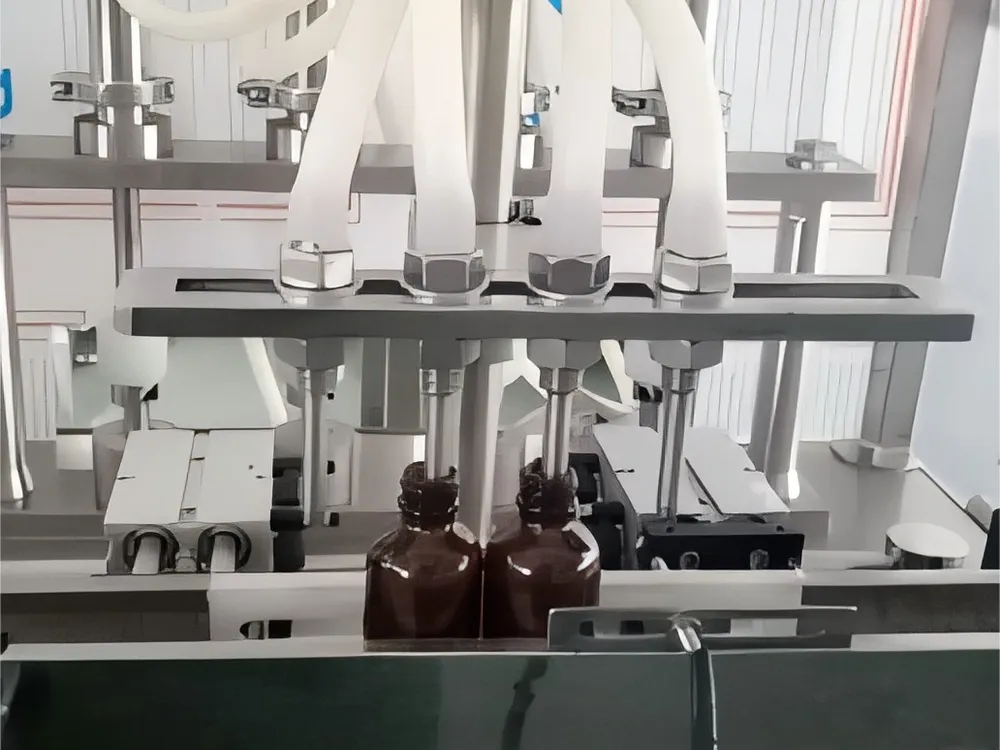

  • Utilizes a servo motor to drive four stainless steel piston pumps for precise, fast filling. Filling parameters for different bottle sizes can be easily adjusted via a touchscreen. Optionally, the system can be upgraded to a ceramic pump structure for enhanced performance.
Oral Liquid Bottle Filling Machine
Specifications
Filling Range 50-100ml (need to change mold)
Production Capacity 40 vials/min
Filling Heads 4 heads
Screw Capping Head 1 head
Filling Accuracy ±1% (depending on material)
Power Supply 220V 50Hz
Qualified Capping Rate 99%
Power 3.5kW
Machine Weight 1000kg
Machine Dimensions (L×W×H) 3000×1800×1800mm
