Pharmaceutical Machinery

Liquid Dosage

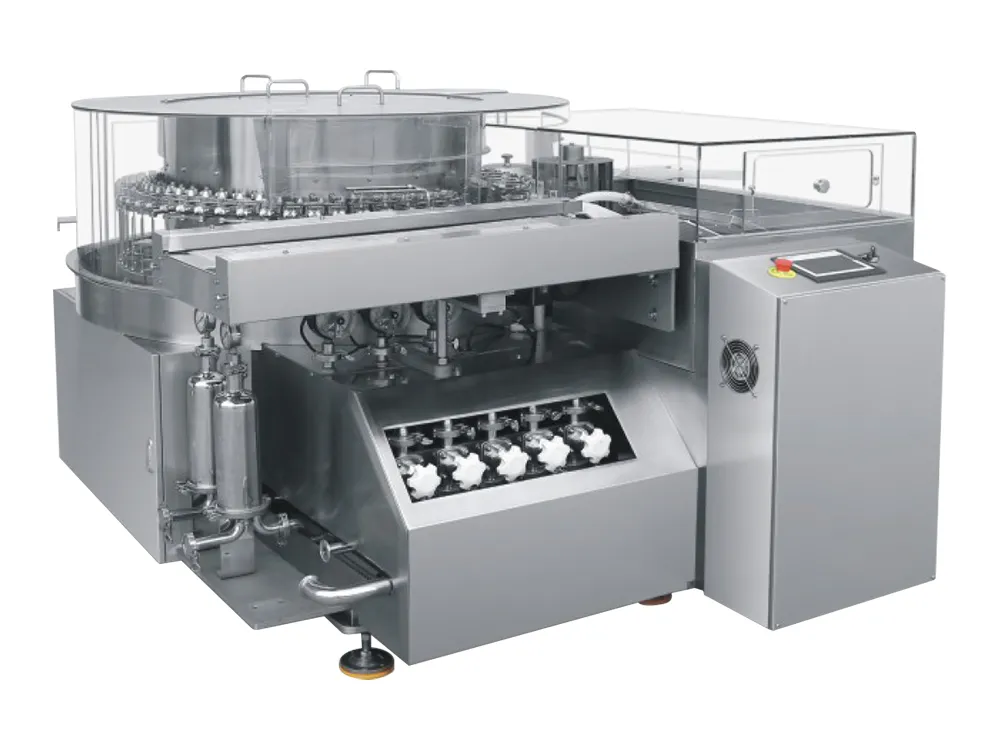

Rotary Ultrasonic Vial/Ampoule Washing Machine

LCX-100

Rotary Ultrasonic Vial/Ampoule Washing Machine

Ultrasonic cleaner for washing vials and ampoules
  • 200 to 220 Vials Per Minute
  • 2 to 5 ml Volume of Vial/Ampoule
Request a Quote
Rotary Ultrasonic Vial/Ampoule Washing Machine Rotary Ultrasonic Vial/Ampoule Washing Machine Rotary Ultrasonic Vial/Ampoule Washing Machine Rotary Ultrasonic Vial/Ampoule Washing Machine Rotary Ultrasonic Vial/Ampoule Washing Machine Rotary Ultrasonic Vial/Ampoule Washing Machine

The ultrasonic vial washing machine is designed for cleaning bottles and containers in the pharmaceutical, chemical, and food industries. It automates processes such as bottle feeding, ultrasonic cleaning, water and air alternating rinsing, and bottle discharge, ensuring high efficiency and superior cleaning performance.

Key Features

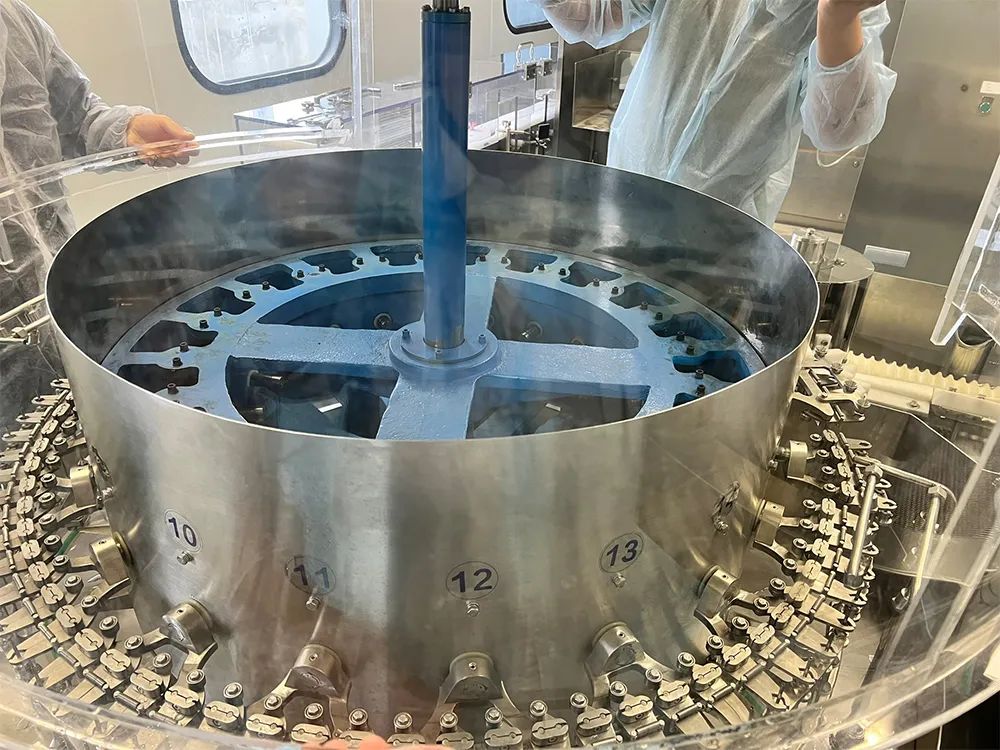

  • Features a vertical rotary drum structure with mechanical arms for bottle gripping, flipping, and tracking motion of washing needles, providing high cleaning efficiency and optimum results
  • All components in contact with cleaning liquids are made of 304 stainless steel and non-toxic, corrosion-resistant materials. The working area is enclosed with transparent PC glass to prevent external contamination.
  • Equipped with a terminal filter to ensure that washing water and compressed air meet cleanliness requirements
  • Driven by an AC motor with frequency conversion speed adjustment and PLC control, offering stable and dependable operation
  • Includes an automatic temperature control system for water in the tank and water level control switches to prevent equipment from operating without water in the pump, ultrasonic system, or heating elements.
Specifications
Model LCX-100
Volume of Vial/Ampoule 2-5ml
Processing Capacity 200-220 vial/min
Water Consumption Approx. 0.6m³/h
Water Pressure 0.15-0.18MPa
Compressed Air Consumption Approx. 45m³/h
Compressed Air Pressure 0.6-0.8MPa
Power 12.5kW
Machine Weight Approx. 2200kg
Machine Dimensions (L×W×H) 2450×2250×1450mm
