SINO-100

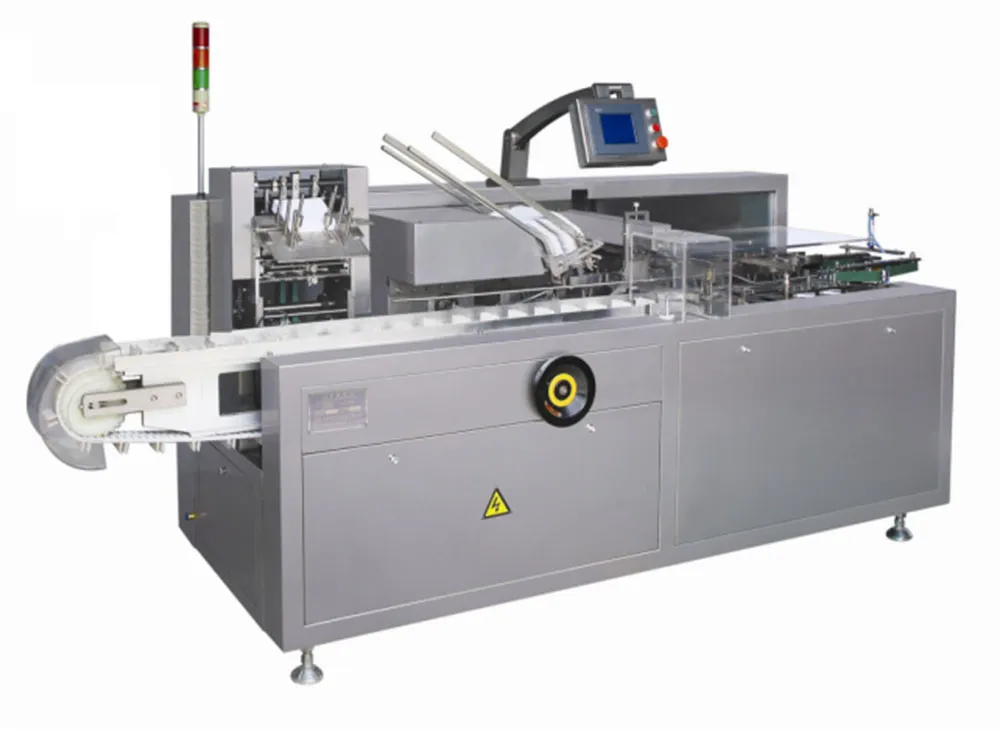

Horizontal Cartoning Machine

Horizontal cartoner for automated feeding and packing products in cartons
  • 30 to 100 Cartons Per Minute
  • (70-180) × (30-85) × (14-50) mm Carton Length× Width × Height
Request a Quote
Cartoning Machine Cartoning Machine Cartoning Machine Cartoning Machine Cartoning Machine Cartoning Machine

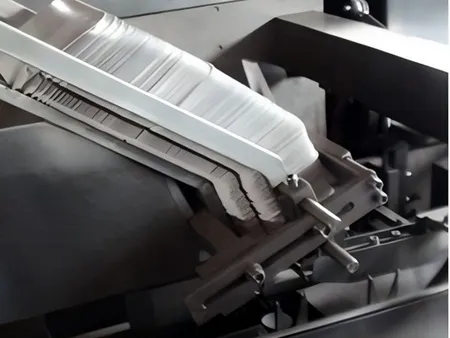

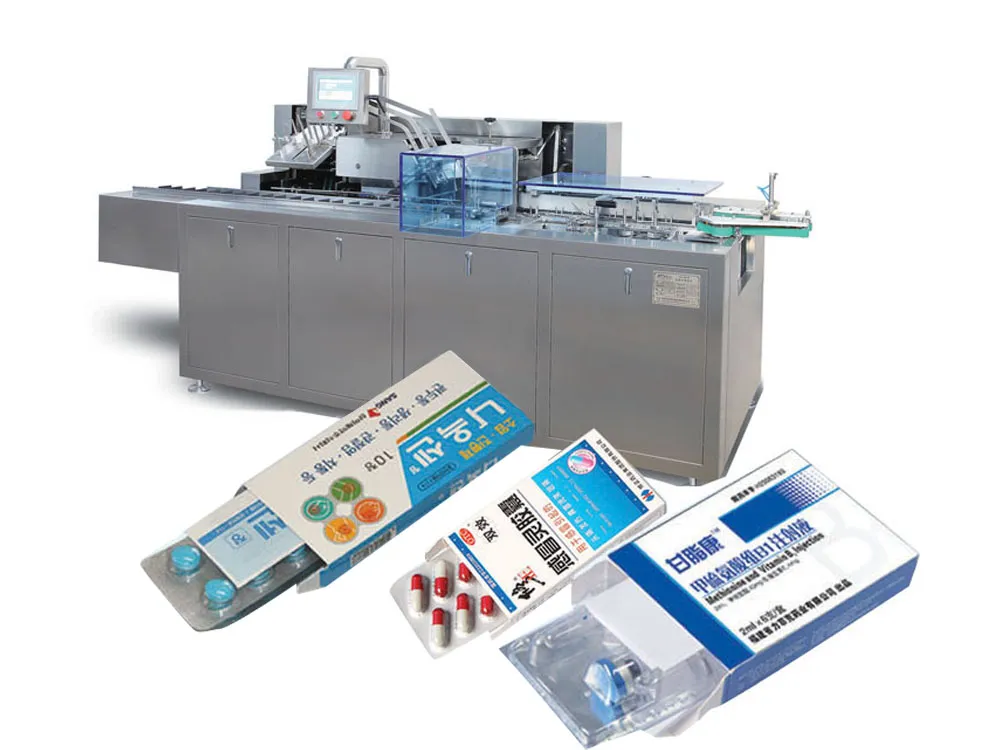

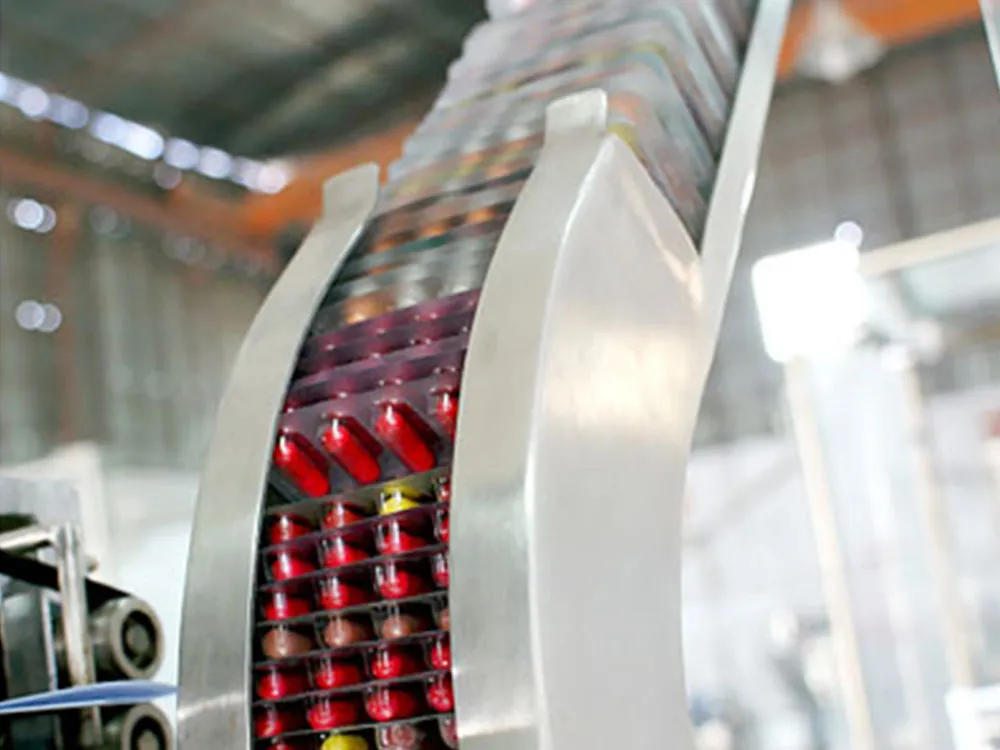

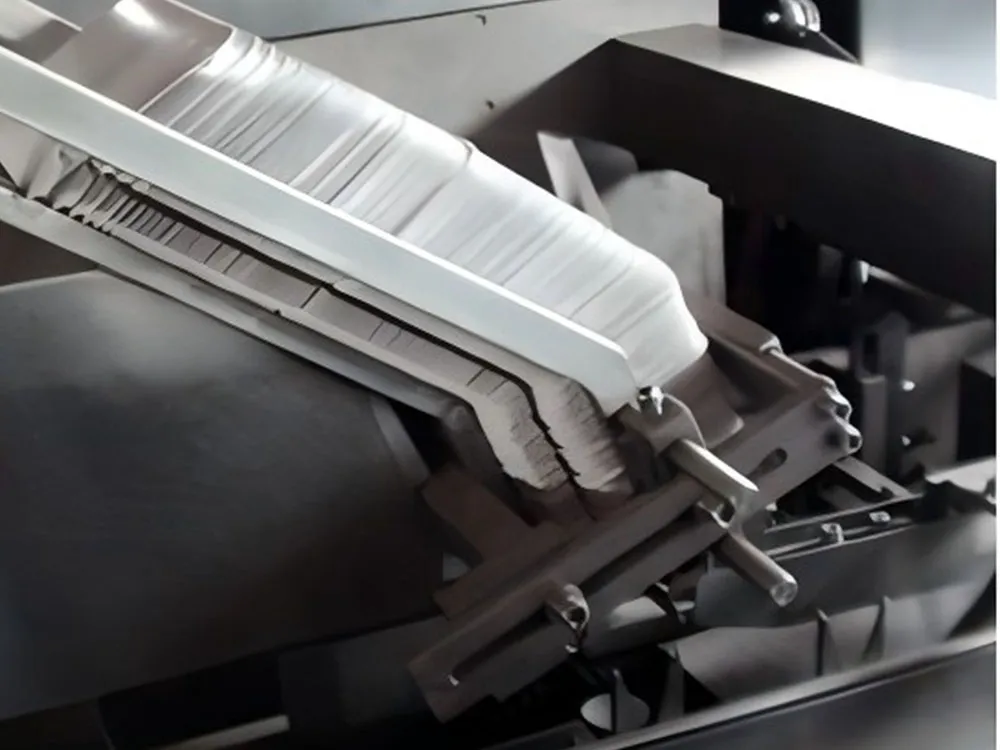

The horizontal cartoning machine is designed for automated feeding and packaging of blister-formed items into cartons. It features an adjustable auto-feeding mechanism that allows users to set the number of blister packs per carton through the touch screen. This packaging machine automates the entire cartoning process, including blister detection, instruction manual folding (1-4 folds) and insertion, carton forming and feeding, product loading, batch number embossing, end flaps sealing (compatible with hot melt glue), material shortage rejection, and finished product output.

It is suitable for various industries, including pharmaceuticals, cosmetics, and food, ensuring efficiency, precision, and reliable carton packaging.

Key features
  • Equipped with a PLC automatic control system and frequency control, utilizing internationally renowned electrical components for reliable performance
  • Includes an automatic shutdown function in case of mechanical overload to prevent equipment damage or accidents
  • Automatically removes cartons that are missing packaging materials or instruction manuals, ensuring consistent product quality
  • Features fault display, alarm system, and finished product counting for streamlined operation and improved packaging
Specifications
Cartoning Speed 30-100 cartons/min
Carton Paper Weight 250-350g/m² (depending on box size)
Carton Size (L×W×H) Length: 70-180mm
Width: 30-85mm
Height: 14-50mm
Leaflet Unfolded Leaflet Size Length: 80-250mm
Width: 90-170mm
Folding Range 1-4 folds
Compressed Air Working Pressure ≥0.6mpa
Air Consumption 120-160L/min
Power Supply 220V 50HZ
Motor Power 0.75kW
Machine Dimensions (L×W×H) 3100mm×1100mm×1550mm
Machine Weight Approx.1400kg
