Dynamic Extraction Tank
Dynamic Extraction Tank Dynamic Extraction Tank Dynamic Extraction Tank

DDT-500

Dynamic Extraction Tank

Botanical extraction equipment
  • 0.5 m³ Tank Volume
  • 800 mm Tank Diameter
Request a Quote

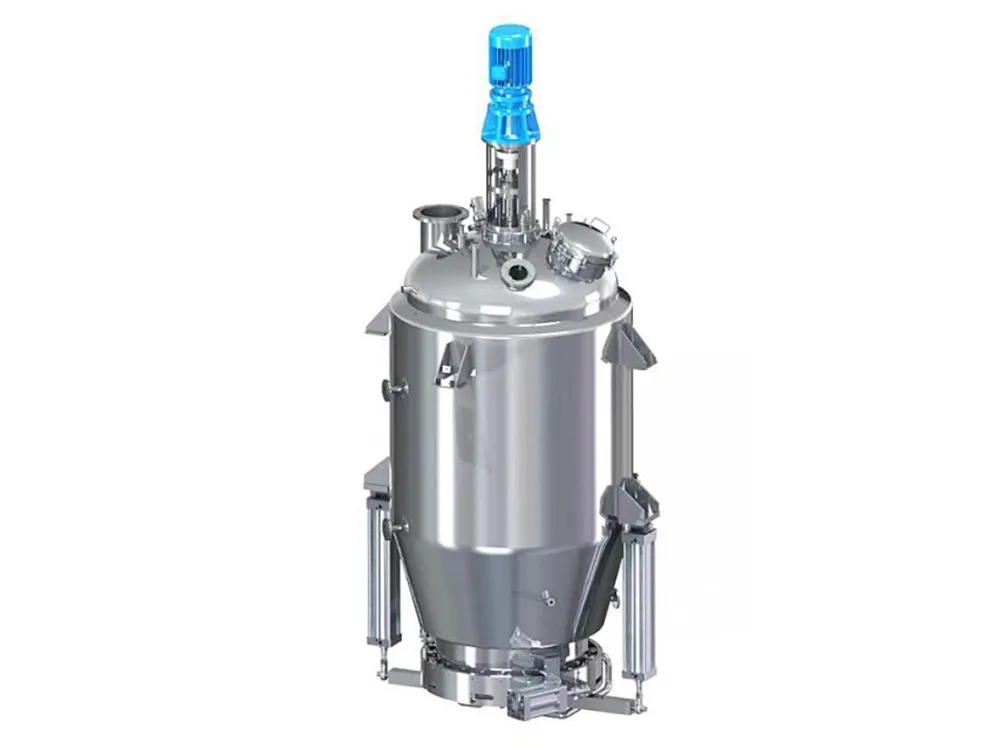

The dynamic extraction tank is designed for efficient extraction of active components from bulk medicinal herbs. It optimizes energy usage while ensuring a higher yield of concentrated extracts and more complete recovery of active ingredients. This extraction tank is primarily used for decoction extraction processes of herbal medicines with water or organic solvents as the medium, and it also enables the simultaneous recovery of essential oils during the extraction process.

Key features
  • Its innovative structure with cylindrical upper section and the lower section with a conical design shortens the stirring shaft length, improving operational stability and safety.
  • Features a pneumatic opening and closing system for the discharge door with a self-locking mechanism, ensuring smooth, safe, and clean residue removal while reducing maintenance costs.
  • The manual quick-open loading door is simple in design, easy to use, and safe, providing convenience for operators.
Specifications
Model DDT-500
Volume 0.5m³
Tank Diameter 800mm
Inside Tank Pressure 0.15MPa
Machine Height 1800mm
Machine Weight 1000kg
Mixing Power 1.1kW
Water Separator Size DN200×800
