Dry Granulator

LGJ-160

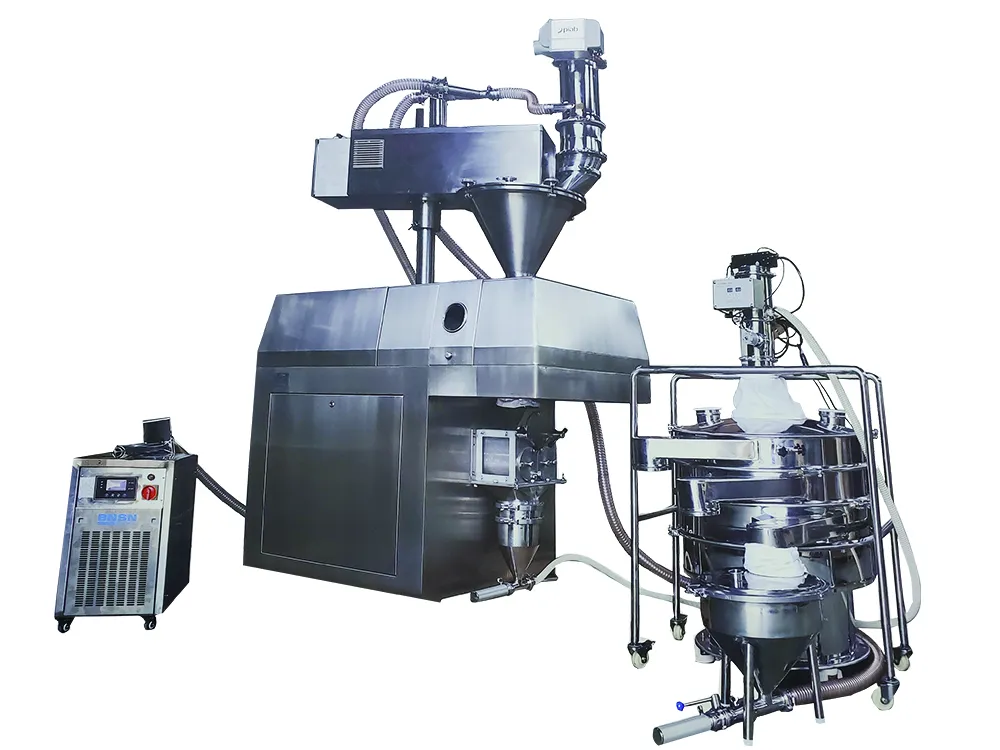

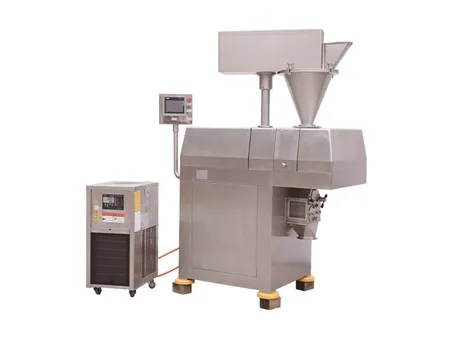

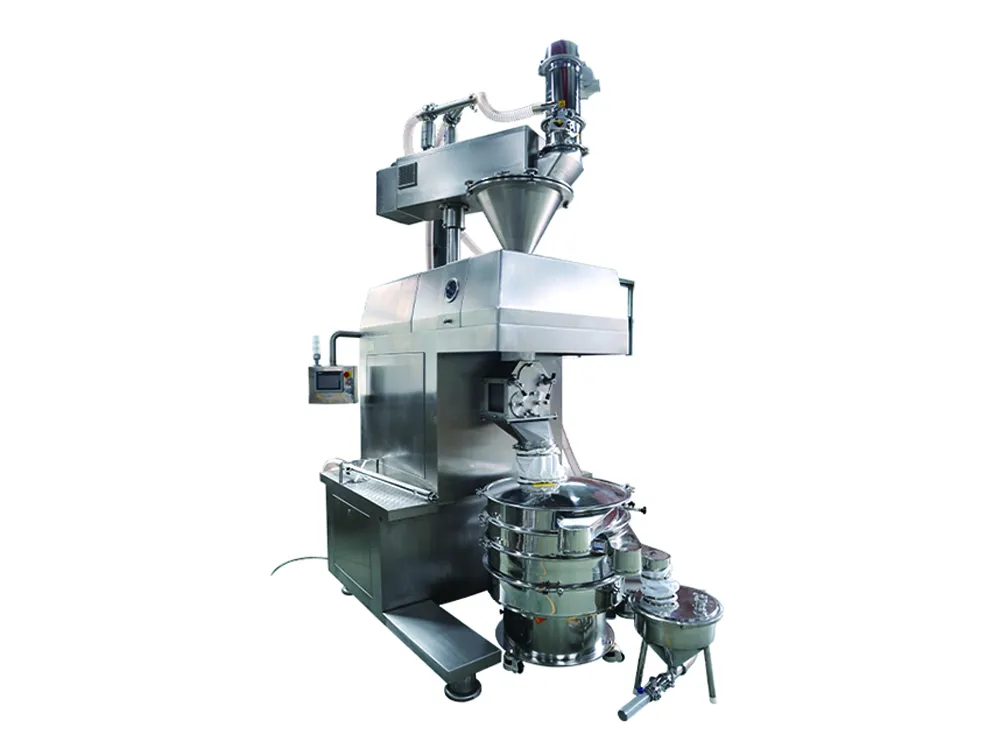

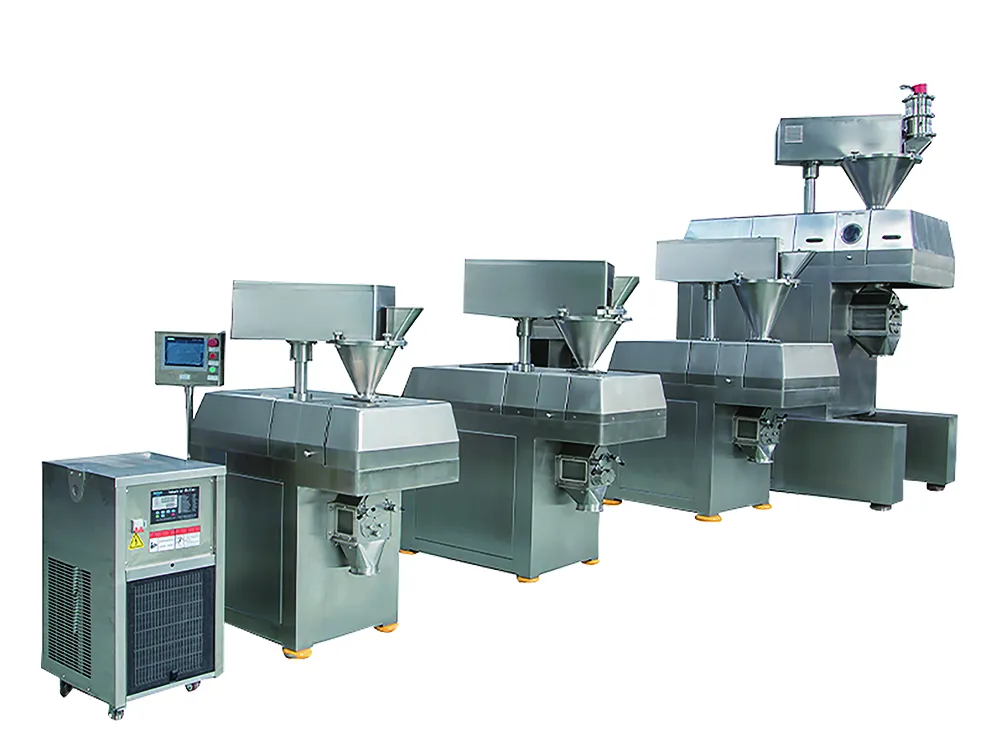

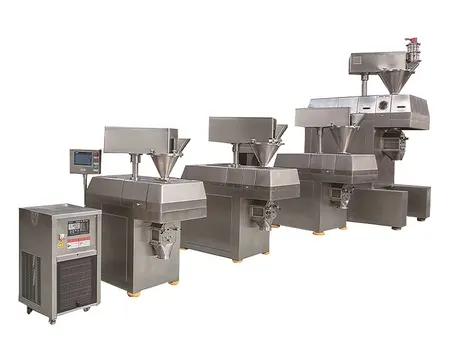

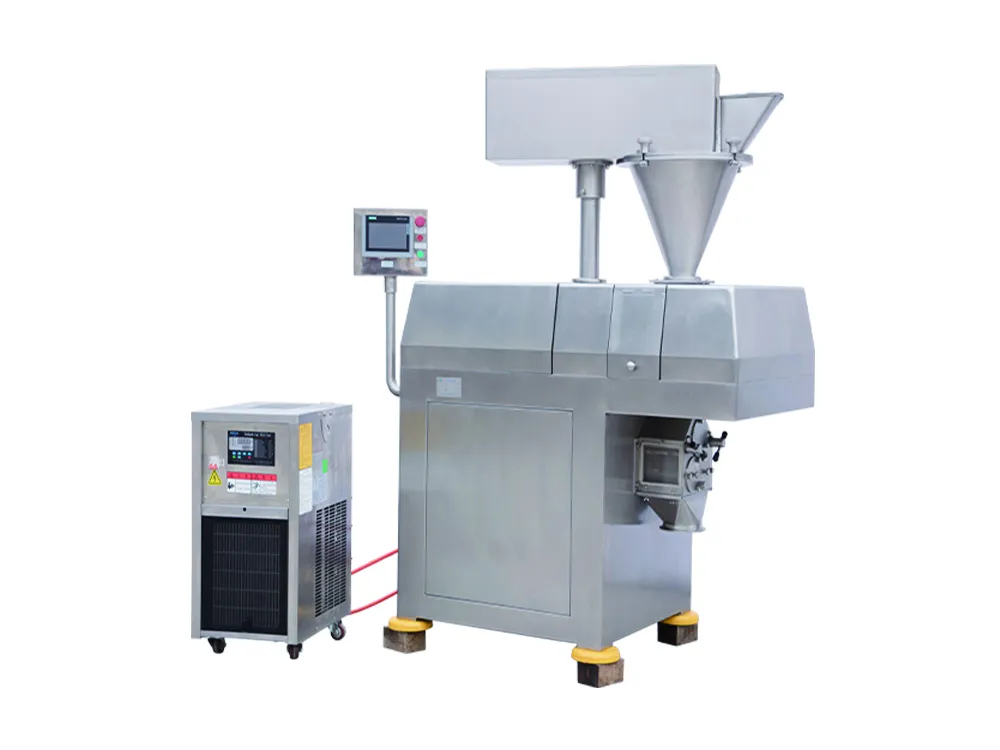

Dry Granulator

High speed mixer granulator combining powder mixing and dry granulation
  • Above 50 Kilograms Per Hour
  • Ø160 mm Roller Diameter
  • 60 mm Roller Width
Request a Quote
Dry Granulator Dry Granulator Dry Granulator Dry Granulator Dry Granulator Dry Granulator

The dry granulator is designed for dry granulation processes and is suitable for the pharmaceutical, food, and chemical industries. This granulation machine efficiently produces high-quality granules through a two-step process of compaction and milling, ensuring the granules meet the required density, particle size distribution, and porosity standards.

Key Features
  • High quality and uniform granule production achieved through compression between two rollers running in opposite directions
  • Gently processes materials during compaction, maintaining their original properties to the greatest extent possible
  • Processes ≥50kg of material per hour, making it suitable for large-scale granulation

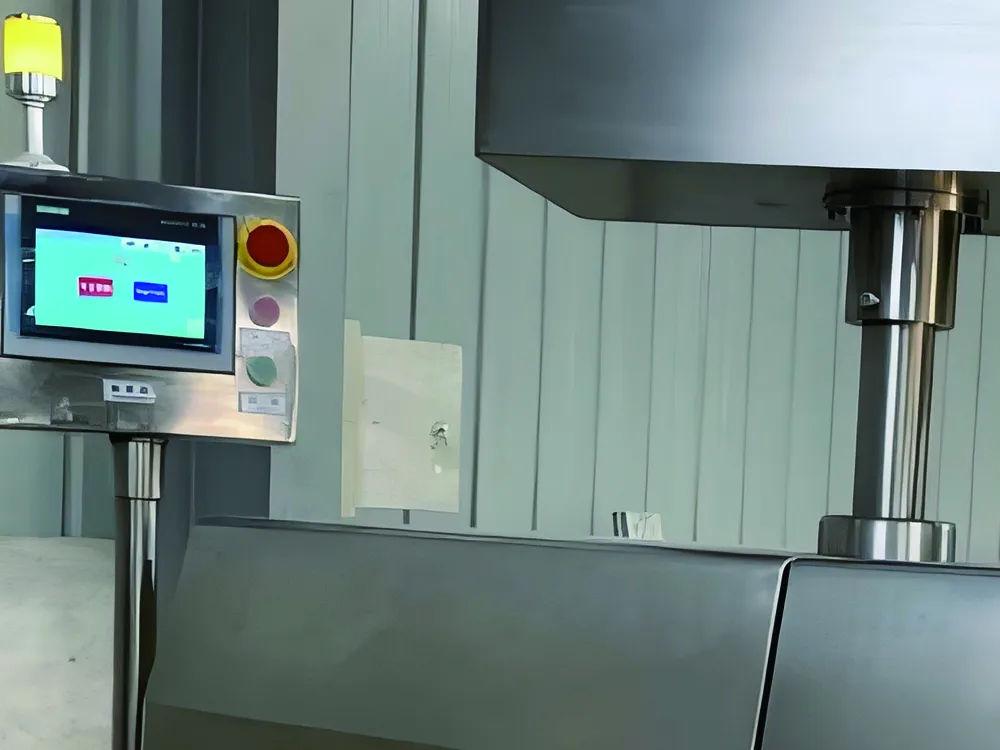

  • Features vertically aligned rollers and advanced control logic to ensure uniform thickness and density of flakes, resulting in consistent granule quality
Specifications
Production Capacity ≥50kg/hour Roller Diameter × Width Ø160×60mm
Feeding Motor Power 1.1kW Feed Screw Speed 10-64rpm
Compaction Motor Power 3kW Roller Speed 5-34rpm
Granulation Motor Power 0.75kW Granulation Speed 50-129rpm
Hydraulic Pump Motor Power 0.75kW Hydraulic Pump Pressure 22MPa
Total Power 5.6kW Hydraulic Cylinder Pushing Force 2×20t
Machine Dimensions 1700×930×2040mm
Machine Weight 1350kg
Distance Between Two Rollers 0.25-2mm (the gap between two compaction rollers is adjustable based on the material properties)
